Molded GRP Gratings
A molded GRP grating is produced by casting glass fiber layers in a mold, where they are fully encapsulated with polyester or vinyl ester resin. This manufacturing process results in a grating with high strength in two directions and exceptional corrosion resistance.
Filter on
R4-MG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Weight types: 18,1 kg/m²
- Colors: Gray
R3-QG1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 17,5 kg/m²
R4-ME3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Yellow
- Weight types: 18,1 kg/m²
R3-QGC
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 32 mm
- Resin types: Isophthalic polyester
- Toplayer: Covered (Quartz Grit)
- Colors: Gray
- Weight types: 22,5 kg/m²
R4-MB3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Blue
- Weight types: 18,1 kg/m²
R4-MR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 18,1 kg/m²
R4-QE3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Yellow
- Weight types: 18,1 kg/m²
R5-MG5
Plastic grid
- Mesh sizes: 50 mm x 50 mm
- Heights: 50mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 19,6 kg/m²
R4-QGC
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 41mm
- Resin types: Isophthalic polyester
- Toplayer: Covered (Quartz Grit)
- Colors: Gray
- Weight types: 25 kg/m²
R4-QG1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 22,0 kg/m²
R3-MR1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 17,5 kg/m²
R5-QG2
Plastic grid
- Mesh sizes: 25 mm x 25 mm
- Heights: 50mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 19,6 kg/m²
R3-MG1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 17,5 kg/m²
R2-MB3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Blue
- Weight types: 12,2 kg/m²
R2-QG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 12,2 kg/m²
R2-MG1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 12,2 kg/m²
R2-QR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Green
- Weight types: 12,2 kg/m²
R1-MR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 13mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 4 kg/m²
R1-MG5
Plastic grid
- Mesh sizes: 50 mm x 50 mm
- Heights: 13mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 4 kg/m²

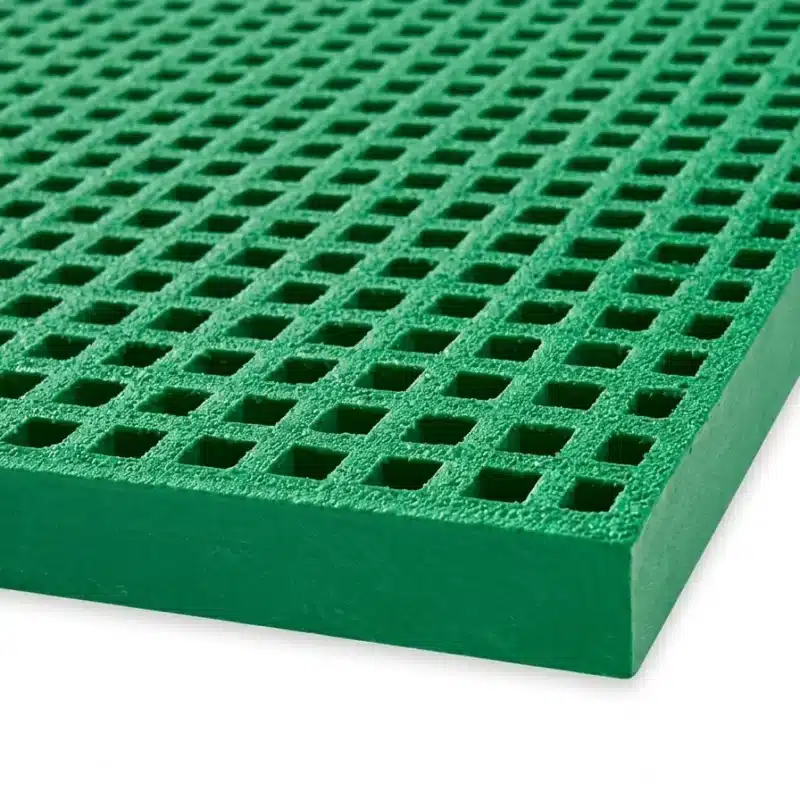

R4-QR1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Green
- Weight types: 18,1 kg/m²
R1-MG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 13mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 4 kg/m²

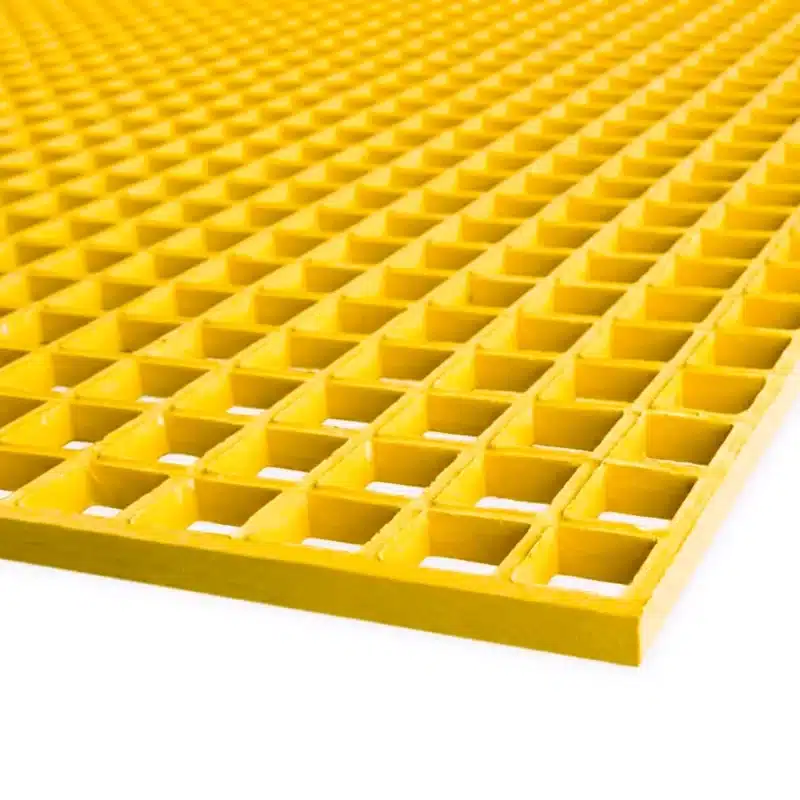

R1-ME3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 13mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Yellow
- Weight types: 4 kg/m²
R1-MR5
Plastic grid
- Mesh sizes: 50 mm x 50 mm
- Heights: 13mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 4 kg/m²
R2-QE3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Yellow
- Weight types: 12,2 kg/m²
R4-QG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 18,1 kg/m²
R3-QG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Gray
- Weight types: 15,6 kg/m²
R3-QR1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Green
- Weight types: 17,5 kg/m²
R3-MR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 15,6 kg/m²
R2-MR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Green
- Weight types: 12,2 kg/m²
R3-ME3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Yellow
- Weight types: 15,6 kg/m²
R4-MG1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Gray
- Weight types: 22,0 kg/m²
R2-ME3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Yellow
- Weight types: 12,2 kg/m²
R2-MG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 25mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Weight types: 12,2 kg/m²
R4-QE1
Plastic grid
- Mesh sizes: 19 mm x 19 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Yellow
- Weight types: 18,1 kg/m²
R4-QR3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 38mm
- Resin types: Isophthalic polyester
- Toplayer: Quartz Grit
- Colors: Green
- Weight types: 18,1 kg/m²
R3-MG3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Weight types: 15,6 kg/m²
R3-MB3
Plastic grid
- Mesh sizes: 38 mm x 38 mm
- Heights: 30mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Blue
- Weight types: 15,6 kg/m²
R5-ME5
Plastic grid
- Mesh sizes: 50 mm x 50 mm
- Heights: 50mm
- Resin types: Isophthalic polyester
- Toplayer: Meniscus
- Colors: Yellow
- Weight types: 19,6 kg/m²
