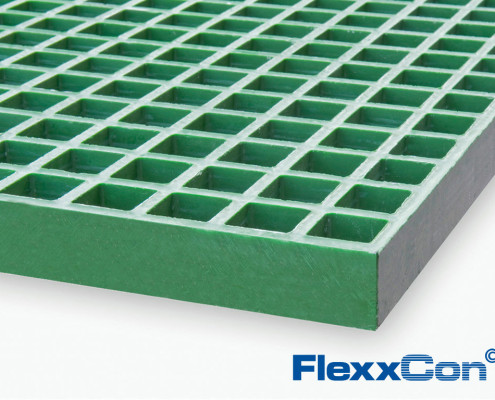

FRP grating 38mm 38×38 ISO Meniscus Green
A 38 mm grating is the most common grating as well as the industrial standard. With this type of grating, spans of up to 1100 mm are easy to attain. Traditionally, the green colour refers to isophthalic polyester. This combination is traditionally still frequently found. The grating has 38×38 mm meshes and a meniscus top with anti-slip surface. In addition to green, FlexxCon also supplies the grating in grey and yellow in ISO-FR.
| Thickness | 38 mm |
| Colour | Green, approximately RAL 6010 |
| Resin type | Isophthalic Polyester |

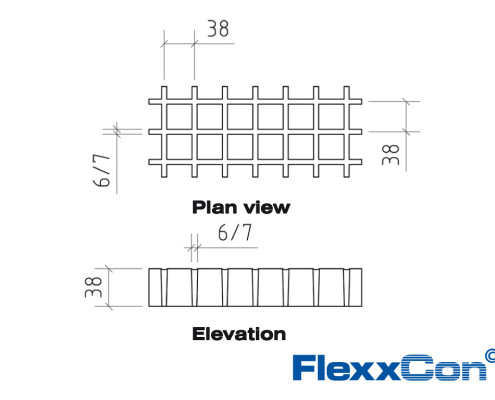

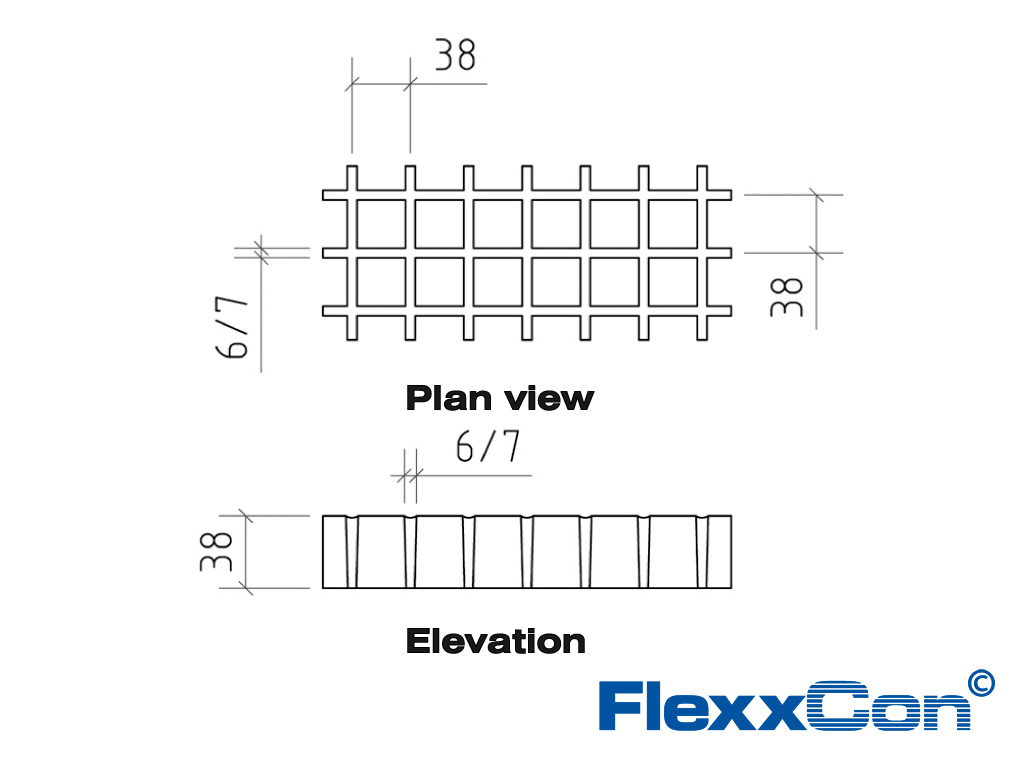

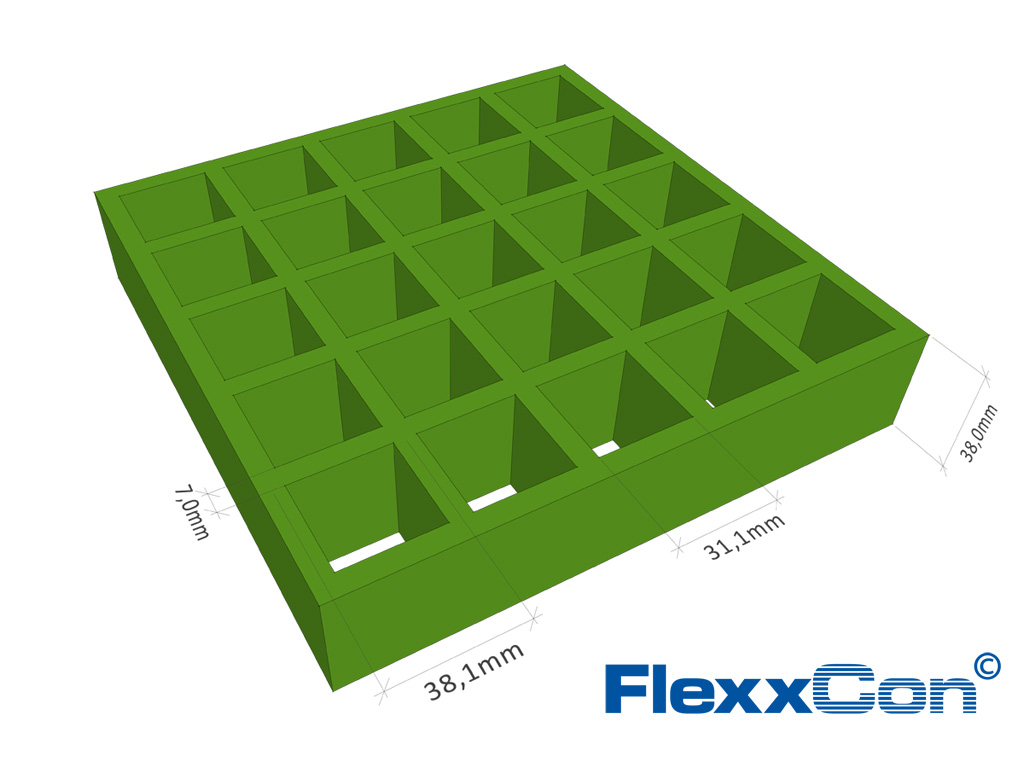

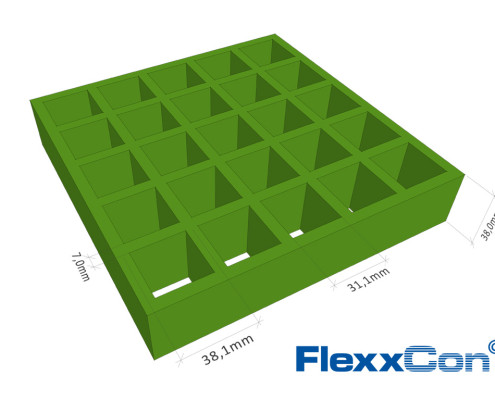

| Mesh sizes | 38 mm x 38 mm |
| Top surface | Meniscus Top surface |
| Weight | 18.1 kg/m² |
This type of FRP grating is available in the following standard sizes:
2000 mm x 1000 mm | product code: R-42010-MRI3 | Download datasheet
3660 mm x 1220 mm | product code: R-43612-MRI3 | Download datasheet

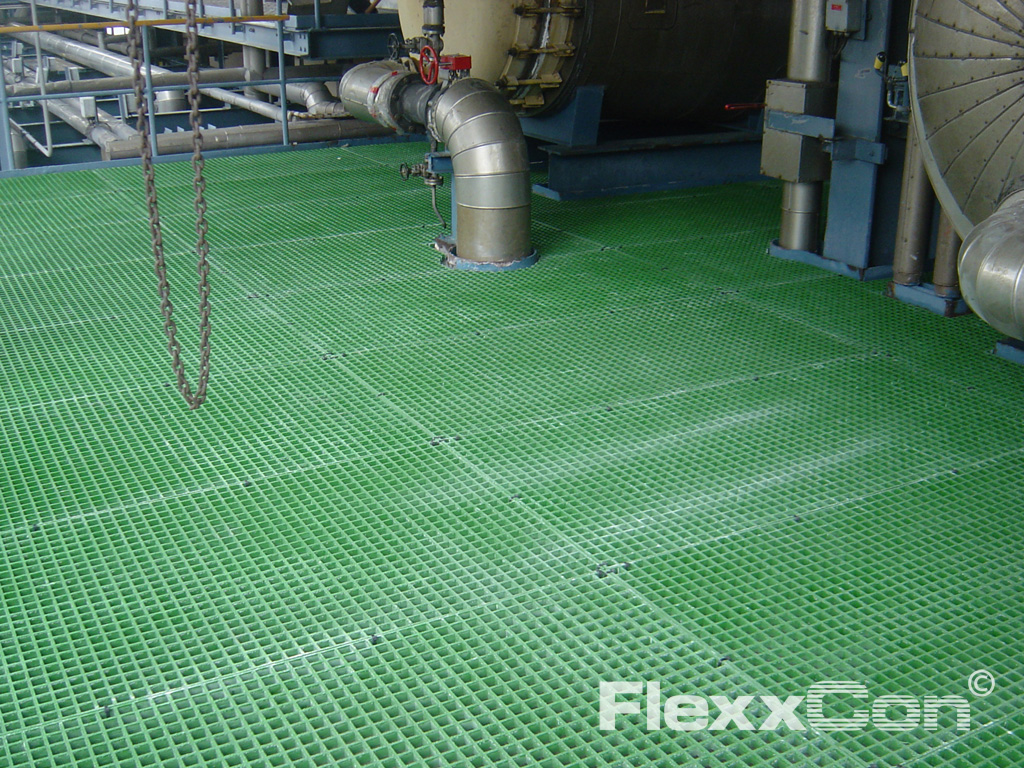

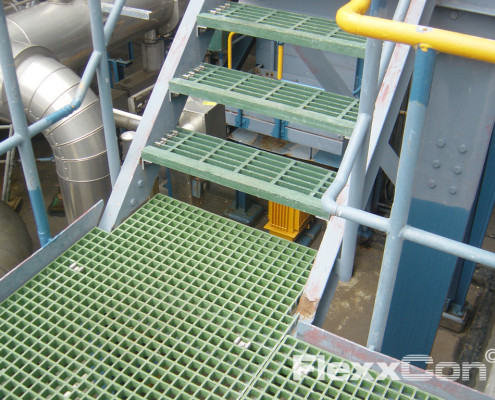

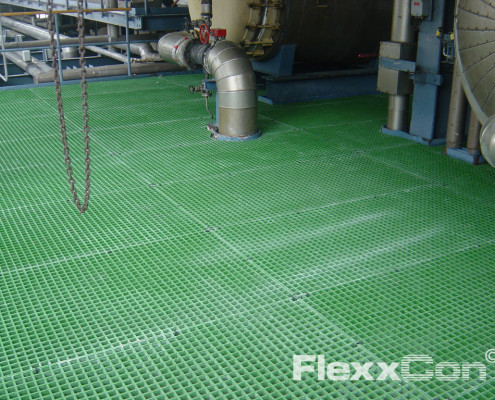

This FRP grating was applied in the following projects:
