FRP grating 38mm 19×19 ISO Meniscus Grey

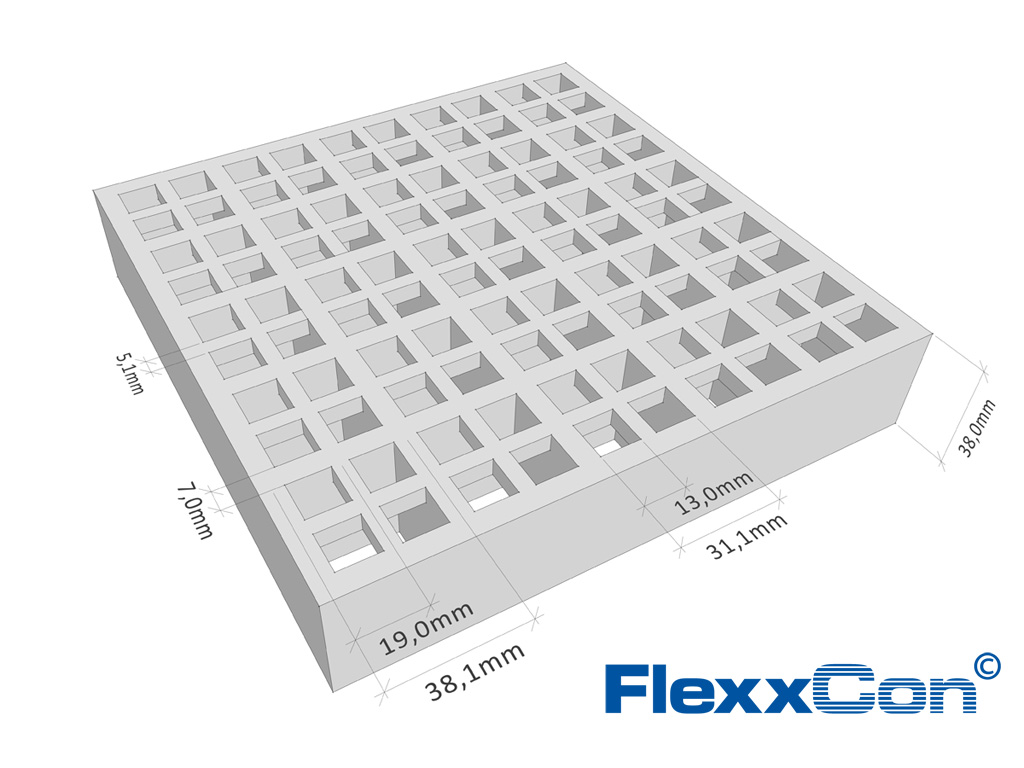

A 38mm thick grating is the most common grating thickness as well as the industrial standard. With this type of grating, spans of up to 1100 mm with industrial load are easy to attain. This grating has a meniscus top surface, which results in good anti-slip properties. The FRP (GRP) grating has a mesh width of 13 x 13 mm and complies with the 15 mm ball test; a 15 mm ball may not fall through the grating. The standard colour of the grating is grey.
| Thickness | 38 mm |
| Colour | Grey, approximately RAL 7035 |
| Resin type | Isophthalic Polyester |
| Mesh sizes | 19 mm x 19 mm |
| Top surface | Meniscus Top surface |
| Weight | 22.0 kg/m² |
This type of FRP grating is available in the following standard size:
3660 mm x 1220 mm | product code: R-43612-MGI1 | Download datasheet

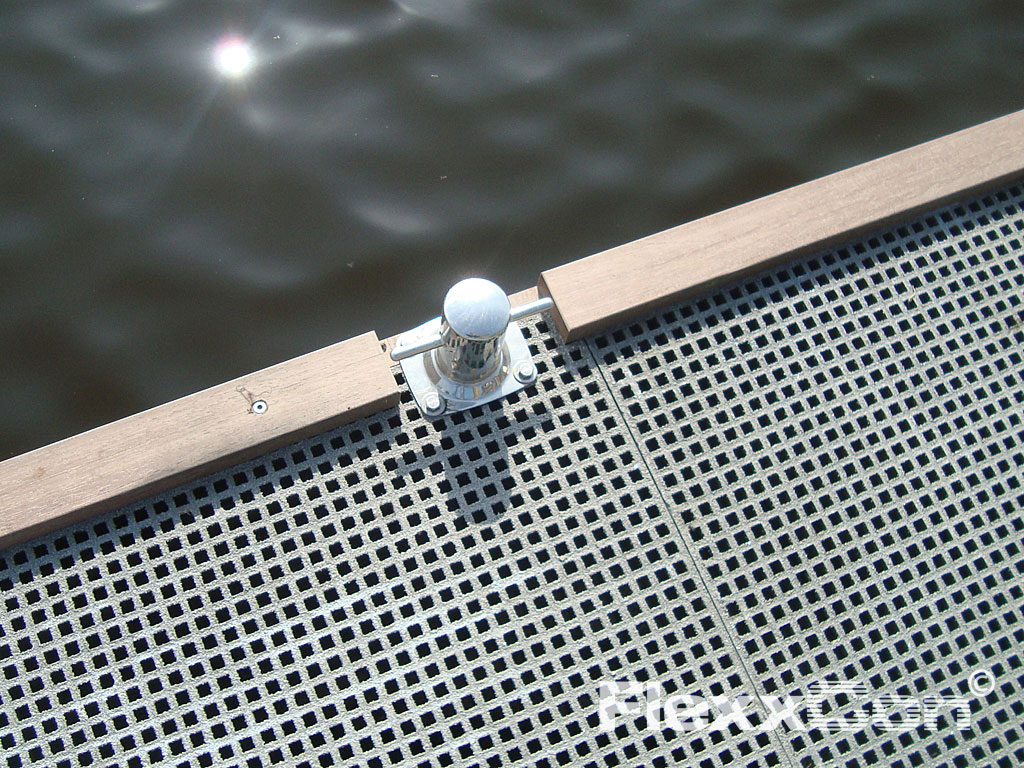

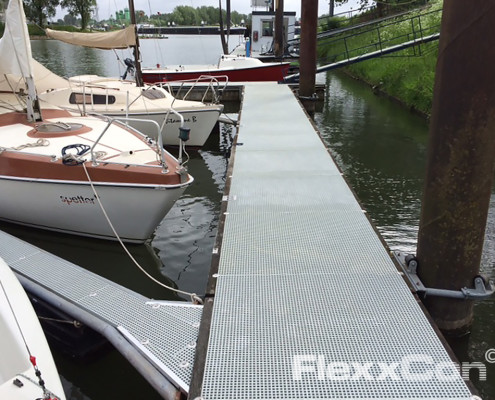

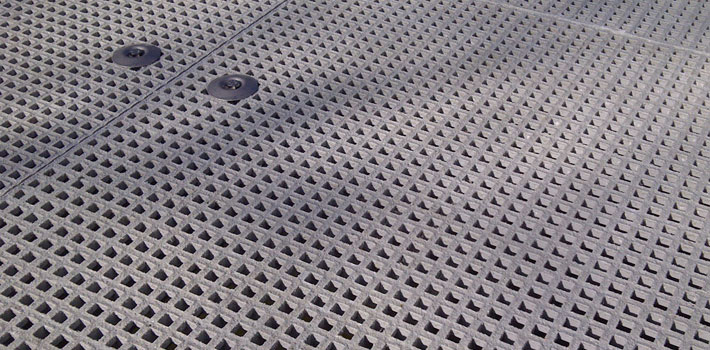

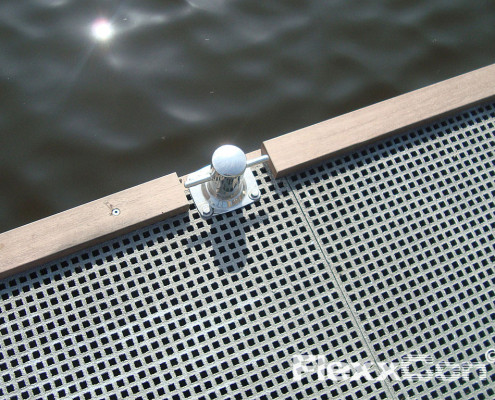

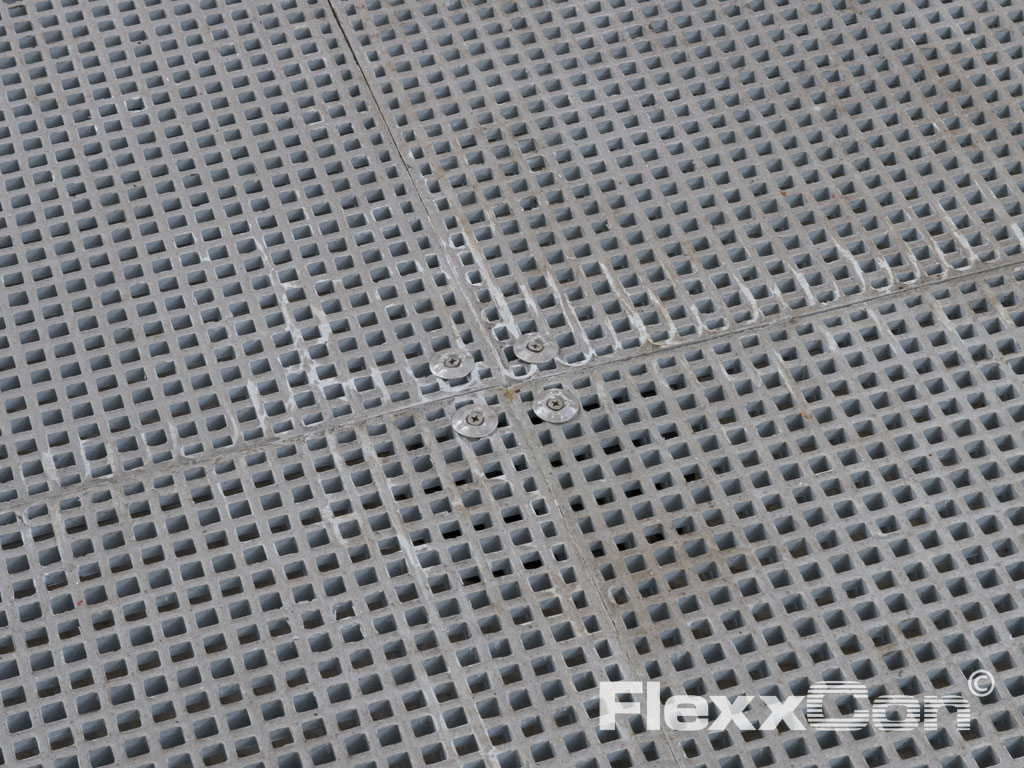

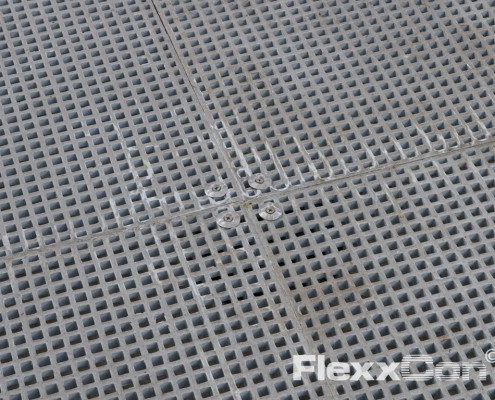

This FRP grating was applied in the following projects:
