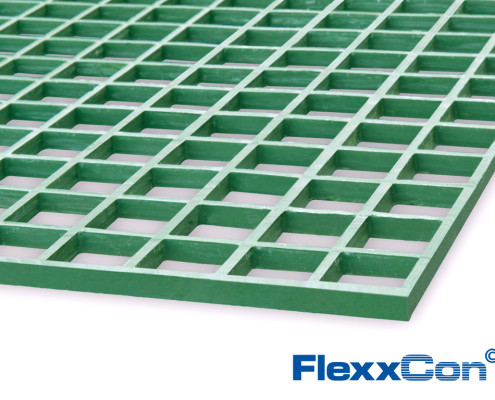

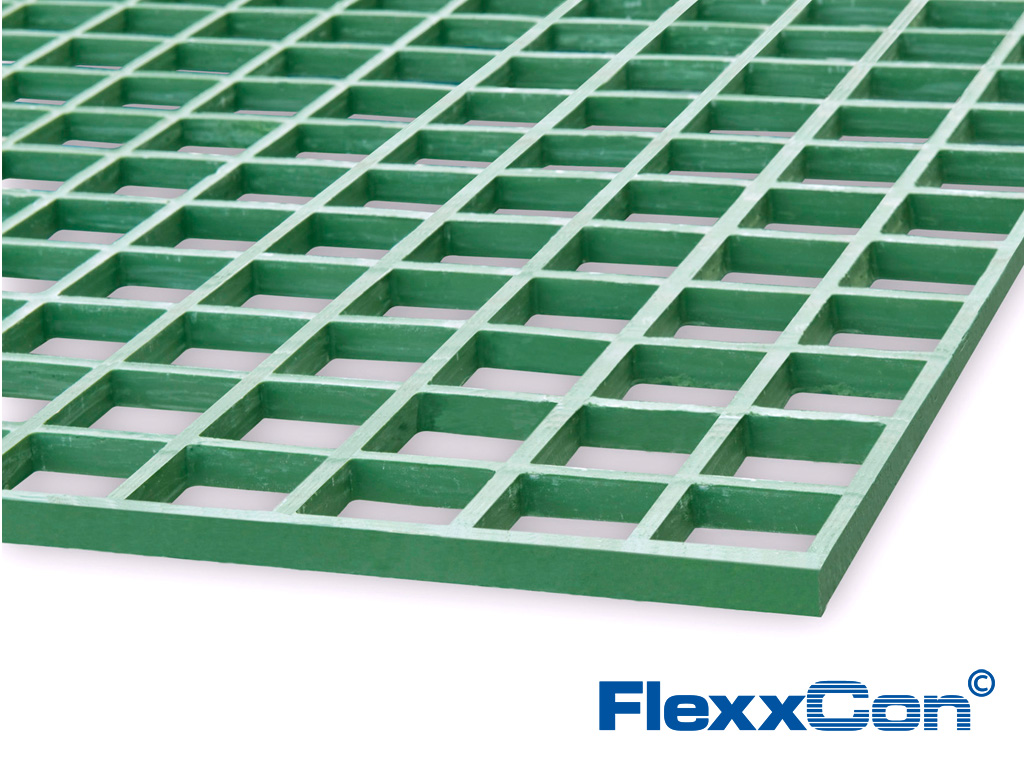

FRP grating 13mm 50×50 ISO Meniscus Green

Multigrid grating is lightweight Fibreglass Reinforced Plastic grating with multiple applications.
The grating is used vertically as screening in and alongside conveyor belts, fencing, air filters, etc. The mesh size of 50 mm x 50 mm ensures your hands do not fit through it, making it a proven safety barrier. Furthermore, when fully supported, the grating can be used horizontally as protection, anti-slip layer or pressure distributor. The Meniscus Top ensures that slipping and falling on slippery surfaces is virtually impossible. In addition to green the grating is also available in grey.

Why use FRP grating?    |    FRP as alternative    |    Applications with FRP grating

Thickness13 mm
ColourGreen, approximately RAL 6010
Resin typeIsophthalic Polyester

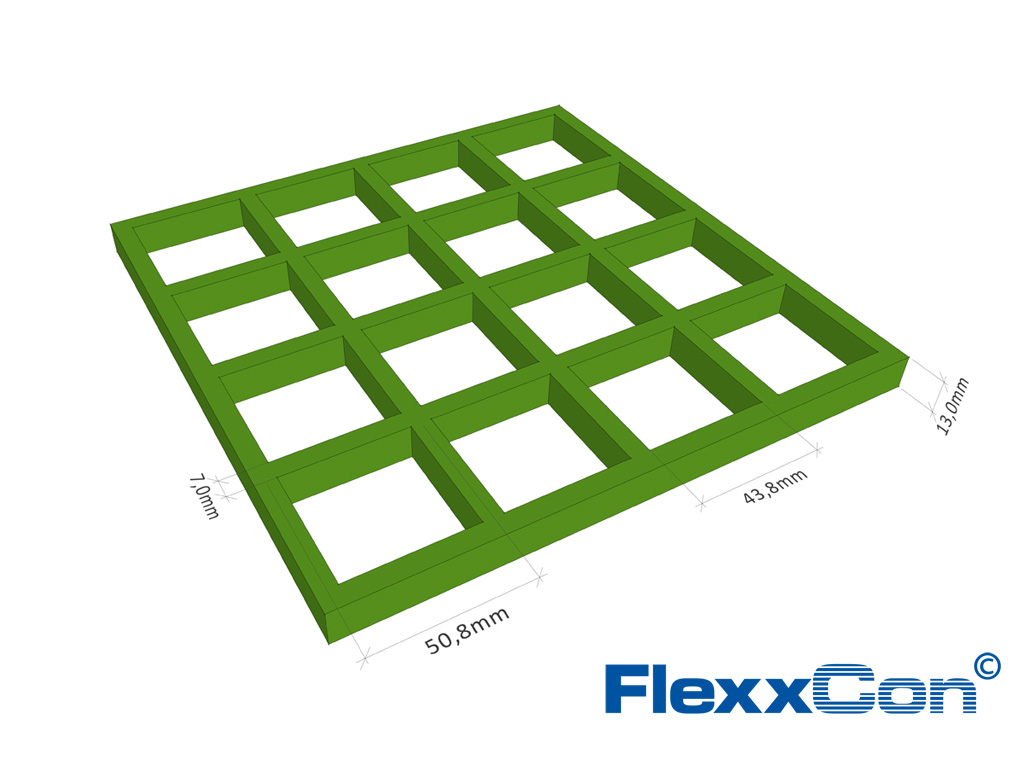

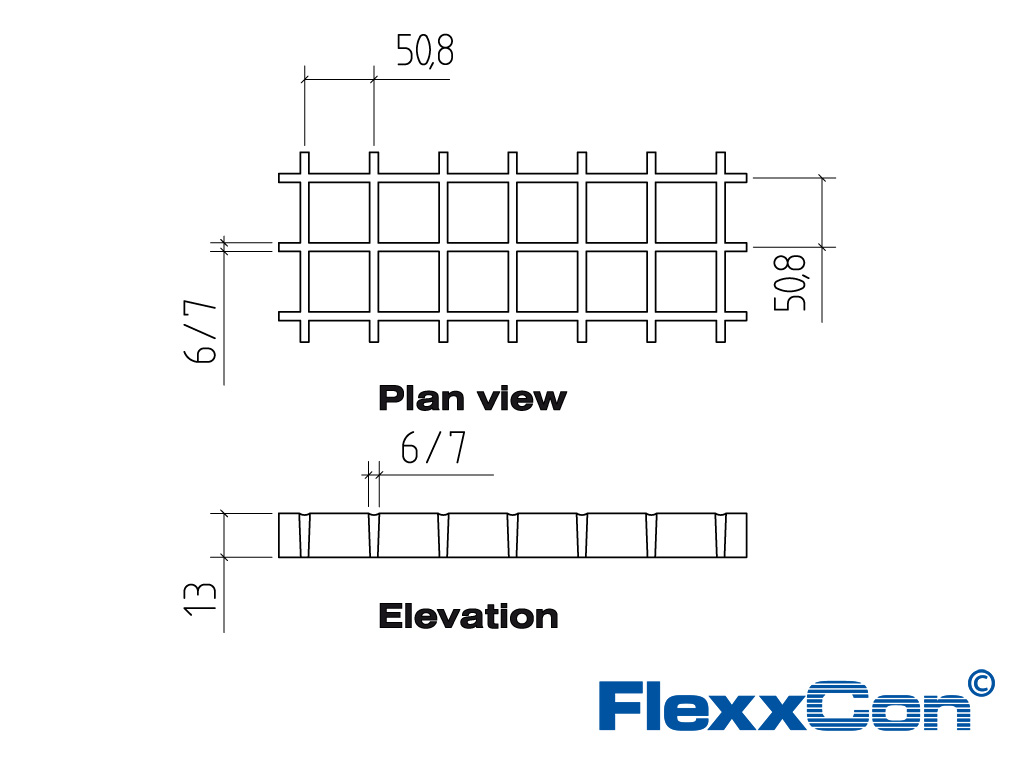

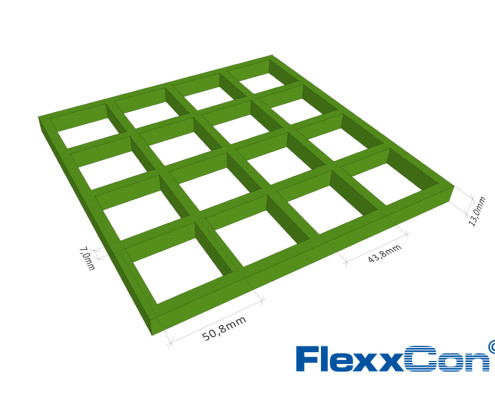

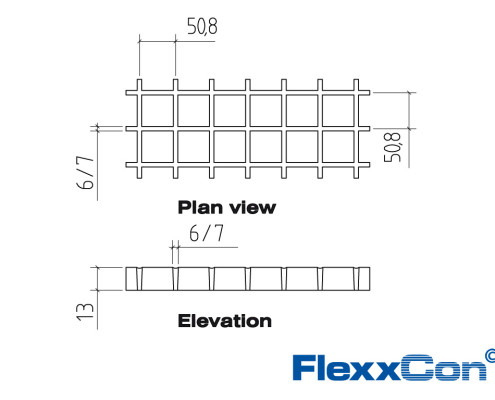

Mesh size50.8 mm x 50.8 mm
Top surfaceMeniscus Top surface
Weight4 kg/m²

This type of FRP grating is available in the following standard size:

3660 mm x 1220 mm   |   product code: R-13612-MRI5   |   Download datasheet
